1200mm 18-28W 3CCT LED Batten Light

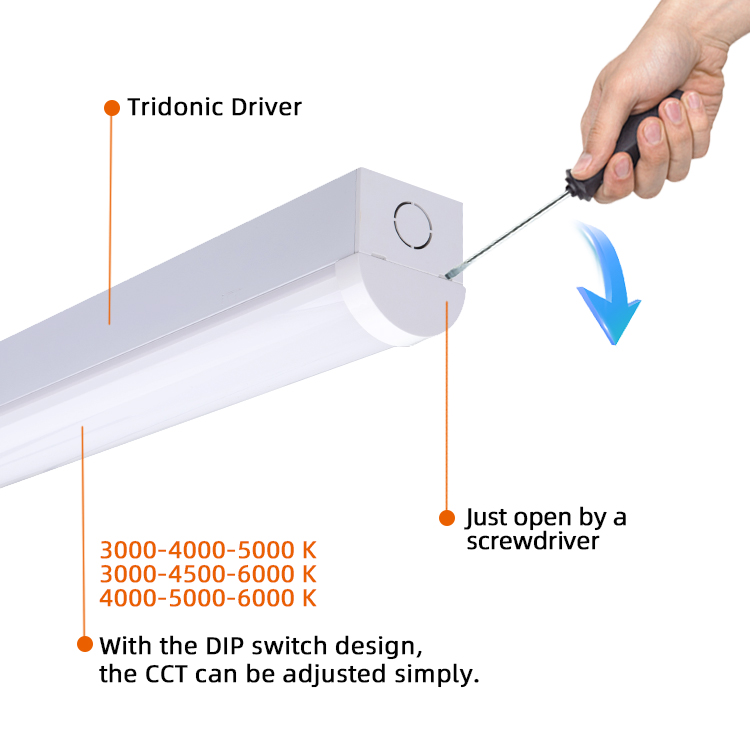

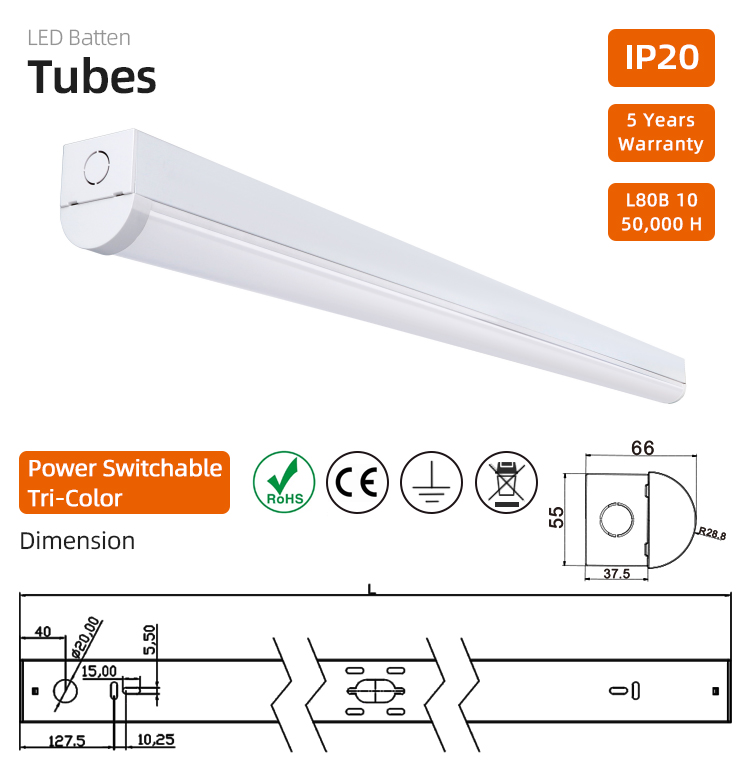

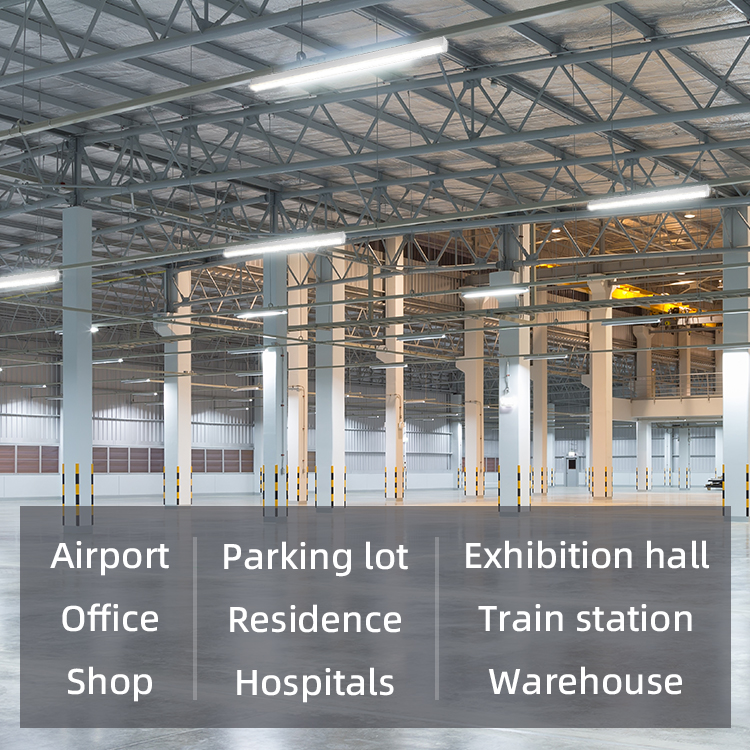

CCT and power adjustable LED Batten, alternative to LED strip lights, it’s with compact configuration offers high bright illumination. This new LED batten light can be used to replace traditional battens with fluorescent lamps. Product length available in 2ft, 4ft and 5ft, with options for sensor, emergency, DALI, flexible for general lighting applications.
- Description
- Product Features
- Technical Specifications
- Related Products
Description
Package
|
Size |
Inner Box |
Master Carton |
Q`ty/Carton |
N.W./Carton |
G.W./Carton |
|
600mm |
605 x 71 x 62mm |
620x 370 x 140mm |
10PCS |
5KG |
6.4KG |
|
1200mm |
1205 x 71 x 62mm |
1220 x 370 x 140mm |
10PCS |
8.8KG |
11.3KG |
|
1500mm |
1505 x 71 x 62mm |
1520 x 370 x 140mm |
10PCS |
10.8KG |
14.5KG |
Features
Datasheet
Input Voltage: AC220-240V 50/60Hz
SDCM: <5
PF:>0.9
IP Rate：IP20
CRI: >80Ra
Driver: Tridonic/OSRAM/BOKE
Lifespan: 50,000Hrs(L80B10)
Function: On/OFF/Emergency/DALI
|
Item |
Model No. |
Power |
Lumen |
Luminous Efficacy |
CCT (K) |
L*W*H |
|
1 |
BA009-06C030 |
17.1W-21.4W-25.7W-30W |
Max 3750lm |
>125lm/W |
3000K/4000K/5000K/6000K 3000K-4000K-5000K 3000K-4000K-6000K |
600x55x62mm |
|
2 |
BA009-12C040 |
22.8W-28.5W-34.2W-40W |
Max 5000lm |
>125lm/W |
3000K/4000K/5000K/6000K 3000K-4000K-5000K 3000K-4000K-6000K |
1200x55x62mm |
|
3 |
BA009-15C055 |
30.4W-38W-45.6W-53.2W |
Max 6875lm |
>125lm/W |
3000K/4000K/5000K/6000K 3000K-4000K-5000K 3000K-4000K-6000K |
1500x55x62mm |
