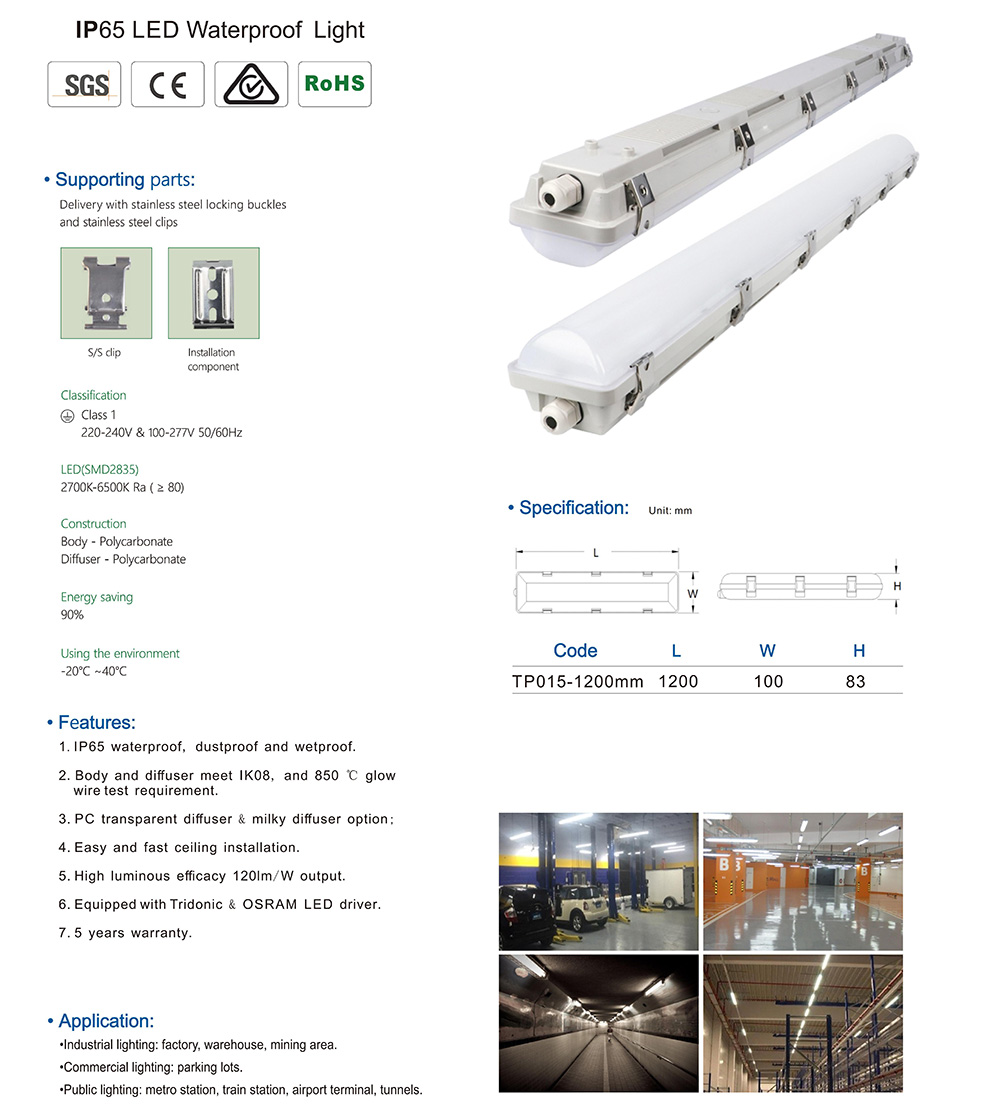

Waterproof Light Fitting With LED Module,PC Triproof Light

Waterproof Light Fitting With LED Module,PC Triproof Light

The IP65 waterproof light fitting provides reliable basic lighting in rooms that are up to 4 meters high – well protected from dust and moisture. We can provide microwave sensor option which makes them ideal for use in driveways, car parks, underpasses, industrial facilities and other applications where light needs to suit specific situations. Easy-to-use and high-quality luminaires. With its slim and stylish design, it retains the product architecture that the range is well-known and appreciated for. Waterproof lighting fittings provide better wide-beam light distribution for straightforward and effective lighting. A direct replacement for traditional waterproof luminaires with fluorescent lamps ranging from 18W up to 58W, it delivers significant energy savings.

Description
Product Features
Technical Specifications

Package

Size	Power	Master Carton	Qty/Carton	N.W./Carton	G.W./Carton
600mm	20W	620x220x260mm	6PCS	7KG	8KG
1200mm	40W	1220x220x260mm	6PCS	12.5KG	14KG
1500mm	60W	1520x220x260mm	6PCS	14KG	16KG

Features

Datasheet

Input Voltage: AC220-240V 50/60Hz, AC100-277V 50/60Hz

SDCM: <5

CRI: >80Ra

PF: >0.9

Lifespan: 50,000Hrs

IP Rate: IP65

Function: On/Off, Emergency, DALI

Beam angle: 120°

Item	Model No.	Power	Lumen	Luminous Efficacy	CCT	*LWH*
1	TP015-06C020	20W	2400lm	>120lm/W	3000K/4000K/5000K/6000K	600x100x83mm
2	TP015-12C040	40W	4800lm	>120lm/W	3000K/4000K/5000K/6000K	1200x100x83mm
3	TP060-15C060	60W	7200lm	>120lm/W	3000K/4000K/5000K/6000K	1500x100x83mm
