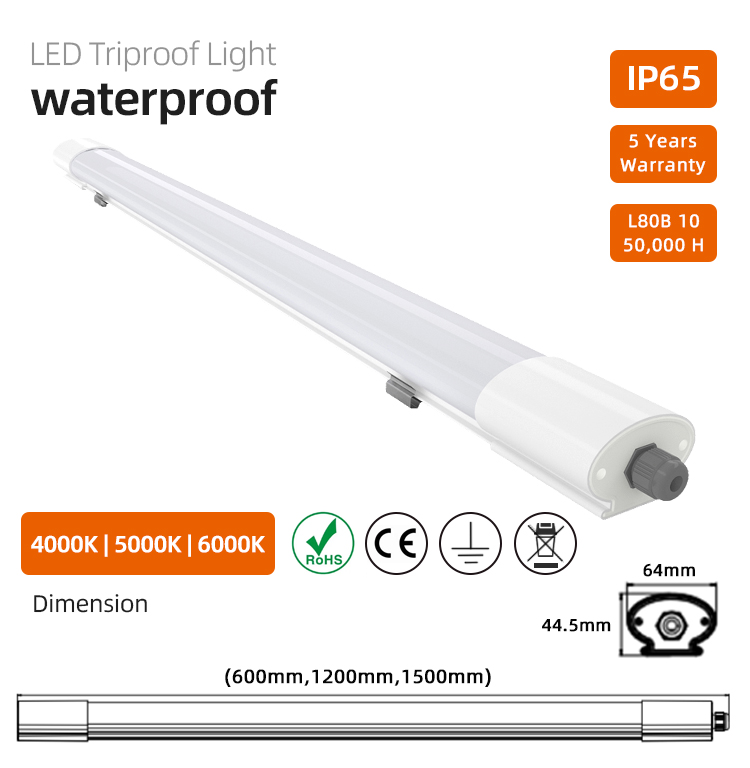

36W LED Light Fitting 4ft 4000lm 4000K Flicker Free With Fast Cable Gland

1. Ingenious housing design that is compact, strong, good looking, light efficient and price competitive.
2. Genuine IP65 Weatherproof / Damp proof Fixture. Automatic Electric-Field Induced Hot-melt welding machine was used to seal the endcap to stop water intrusion. Widely used to WET AREAS, such as wet warehouse, parking lot, lab, water park, carwash, swimming center etc..
3. Tool-less fast installation & connection. Designed to have openable end-caps and quick electrical connectors. Saving the installer a lot of time and improving installation efficiency greatly.
4. Up to 120lm/w optional, interconnectable thru wiring optional, multi-lumen, multi-CCT are ready for selections.
5. Real Flicker-free, Preventing Eye discomfort and fatigue. The driver is able to withstand the sudden 65V voltage drop test, and still No flicker.
6. With a complete range of types and a wide range of applications, one-stop procurement can meet the needs of different customers and different applications.

  • Overview
  • Related Products

Description

TP019 details

Datasheet

Input Voltage: AC220-240V 50/60Hz

SDCM: <5

CRI: >80Ra

PF: >0.5

Lifespan: 30,000Hrs

IP Rate: IP65

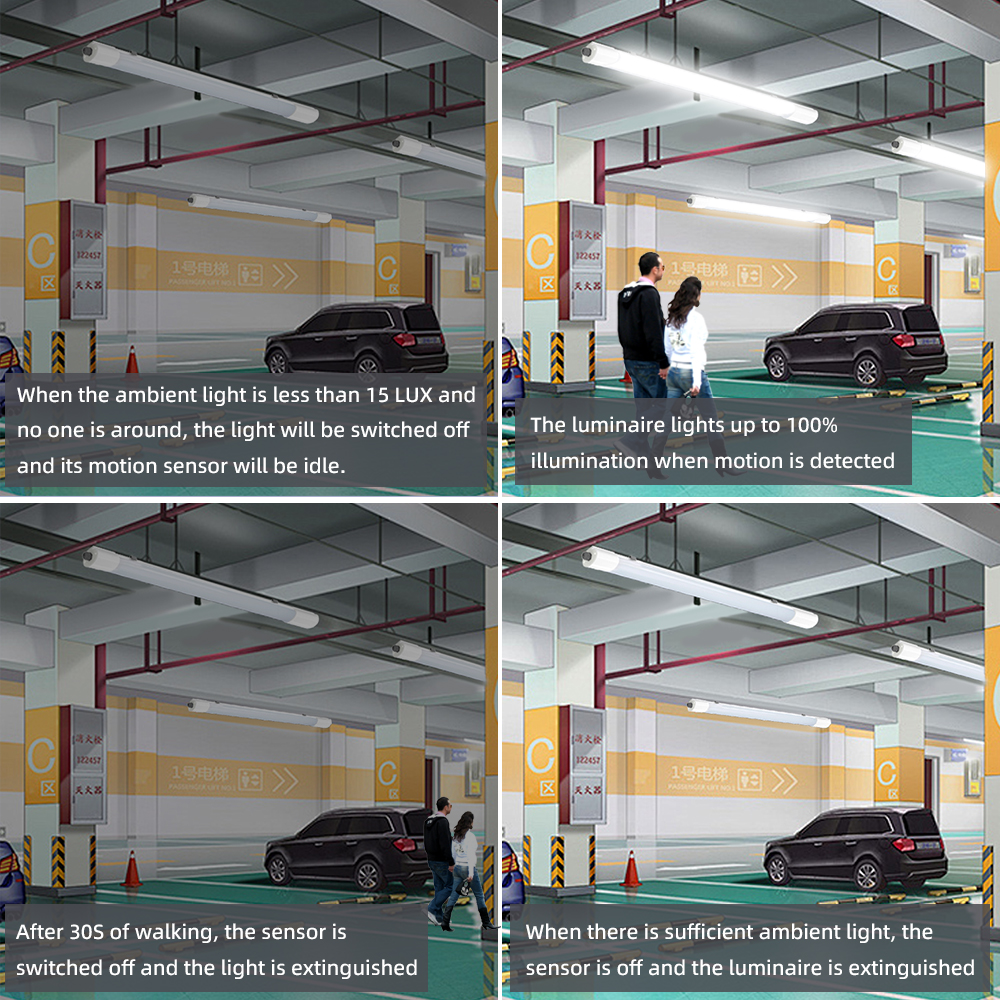

Function: On/Off / Photocell Motion Sensor

Beam angle: 120°

Item

Model No.

Power

Lumen

Luminous Efficacy

CCT

L*W*H

1

TP019-06C018

18W

2160lm



>120lm/W

3000K/4000K/5000K/6000K

600x64x44.5mm

2

TP019-12C036

36W

4320lm

>120lm/W

3000K/4000K/5000K/6000K

1200x64x44.5mm

3

TP019-15C045

45W

5400lm

>120lm/W

3000K/4000K/5000K/6000K

1500x64x44.5mm

Features

TP019 details

TP019 details

Package

Size

Power

Inner Box

Master Carton

Qty/Carton

N.W./Carton

G.W./Carton

600mm

16W

595x70x45mm

615x295x245mm

20PCS

7.5KG

9.5KG

1200mm

36W

1195x70x45mm

1215x295x245mm

20PCS

16.5KG

18.5KG

1500mm

46W

1495x70x45mm

1515x295x245mm

20PCS

19KG

21.5KG
