Power and CCT Adjustable LED Slim Batten

Power and CCT Adjustable LED Slim Batten

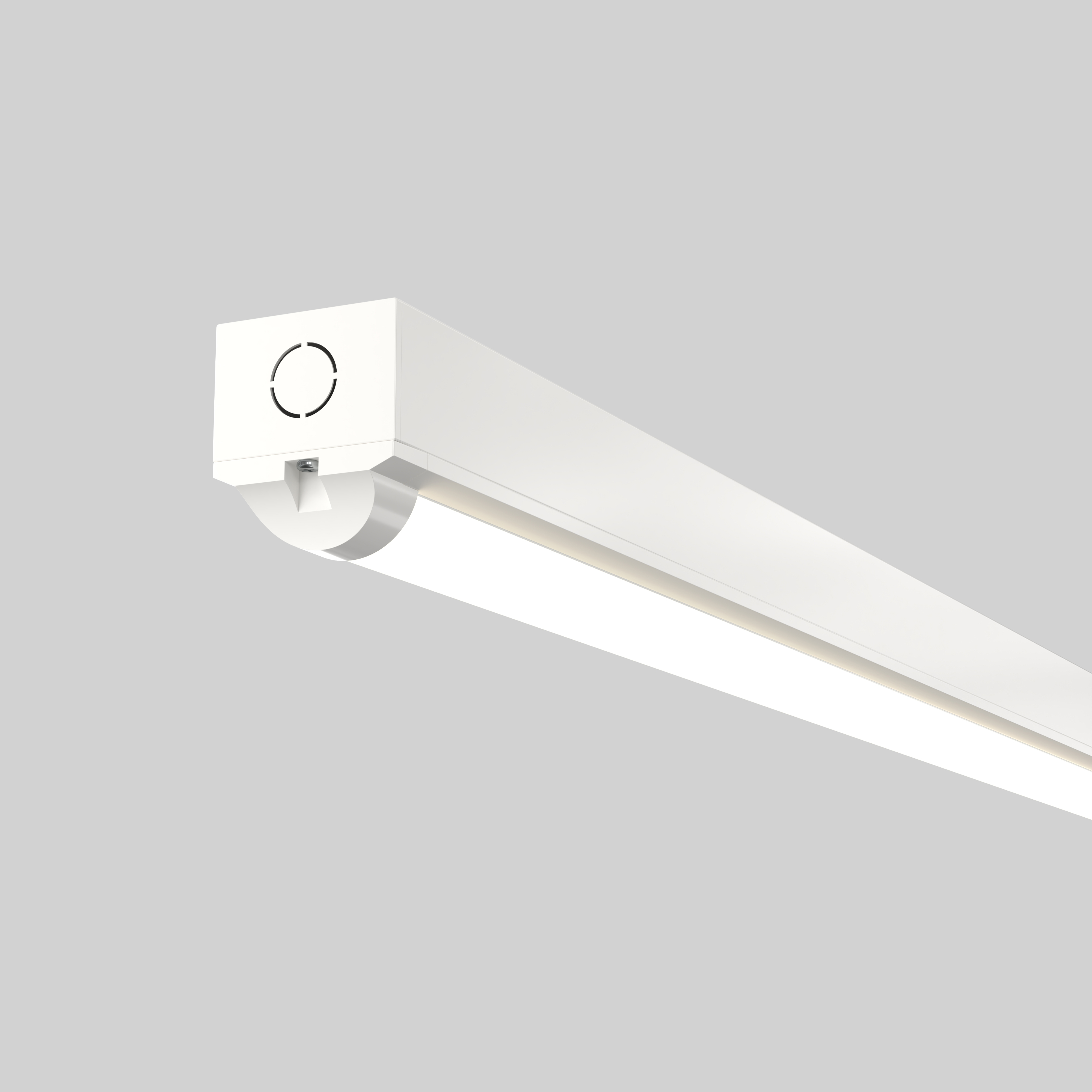

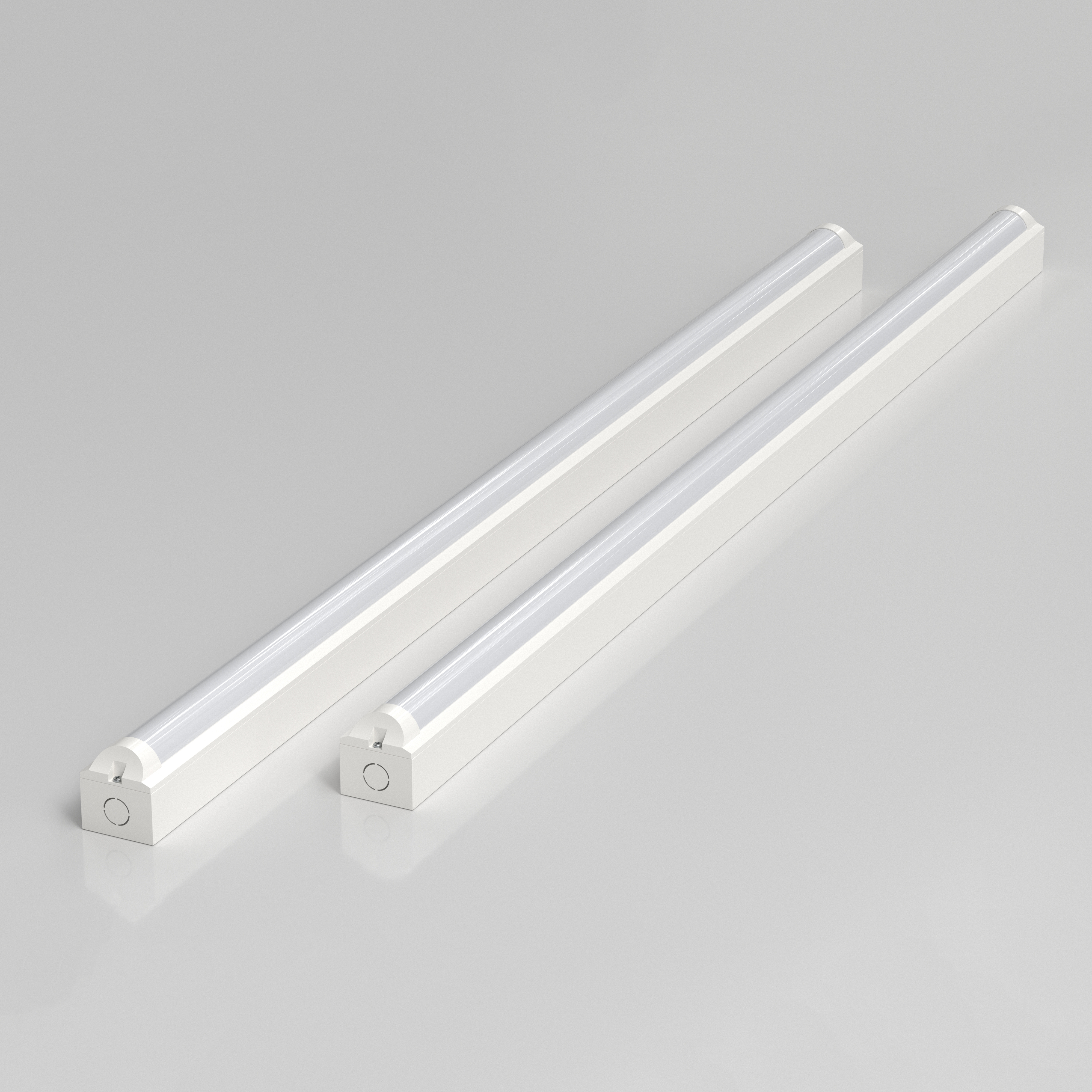

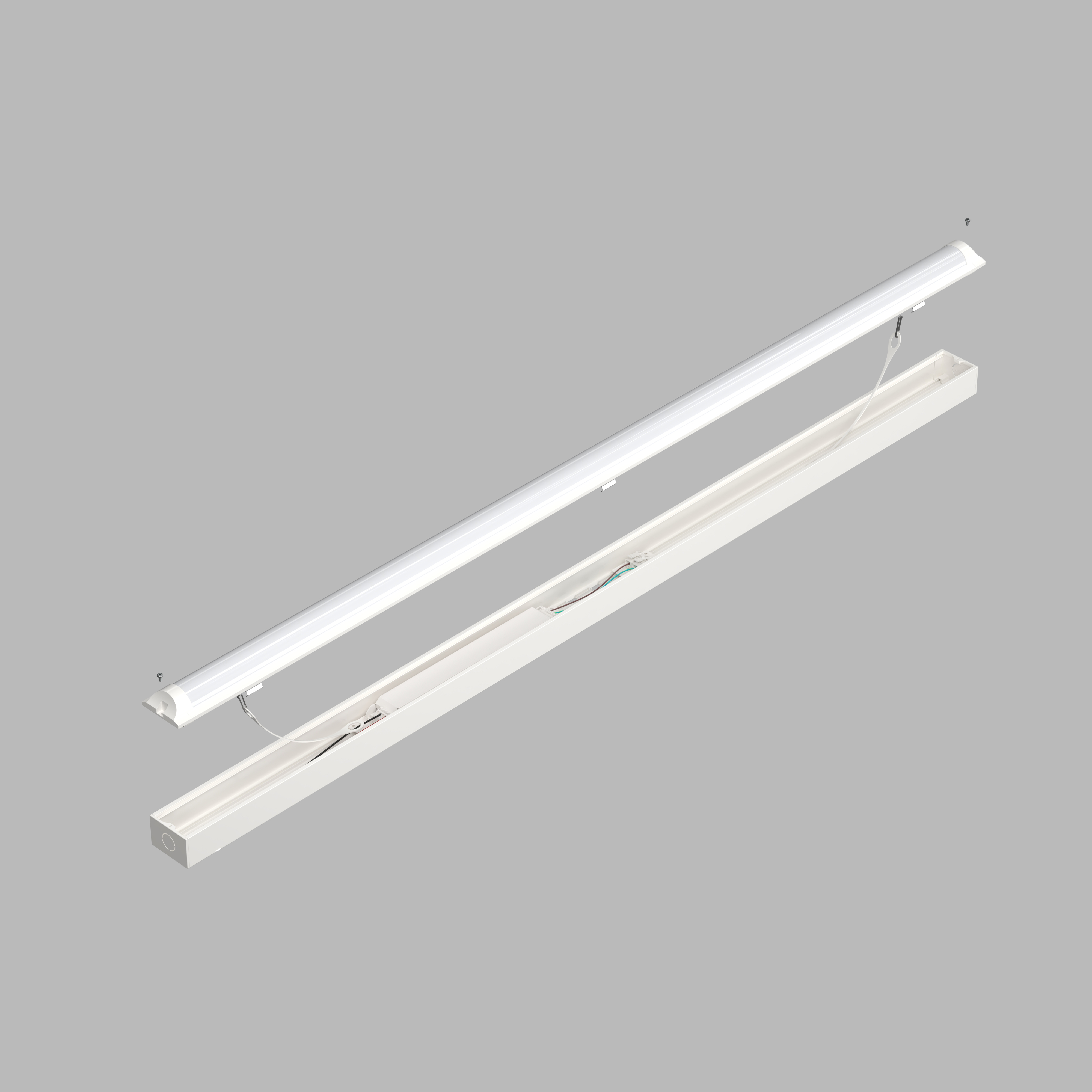

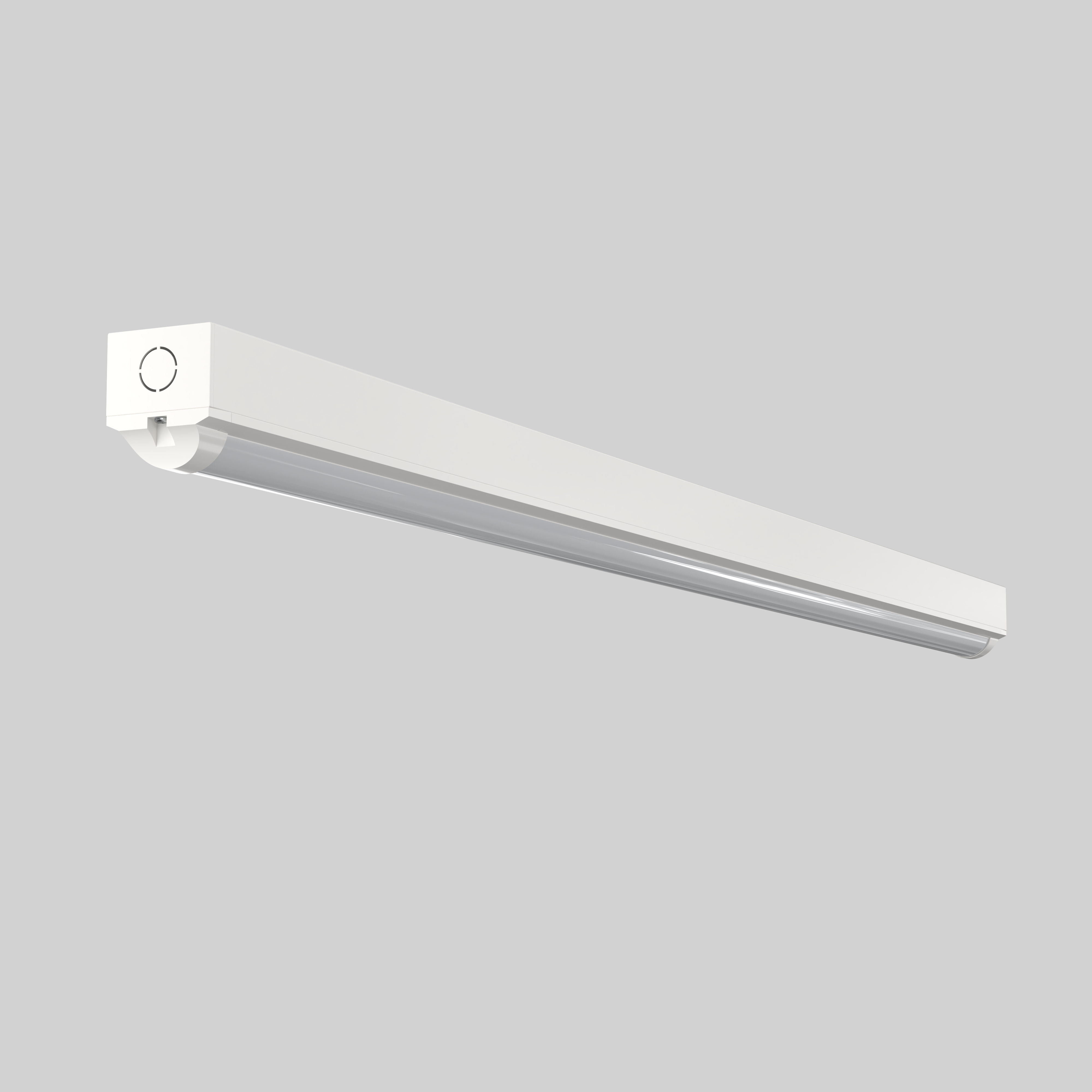

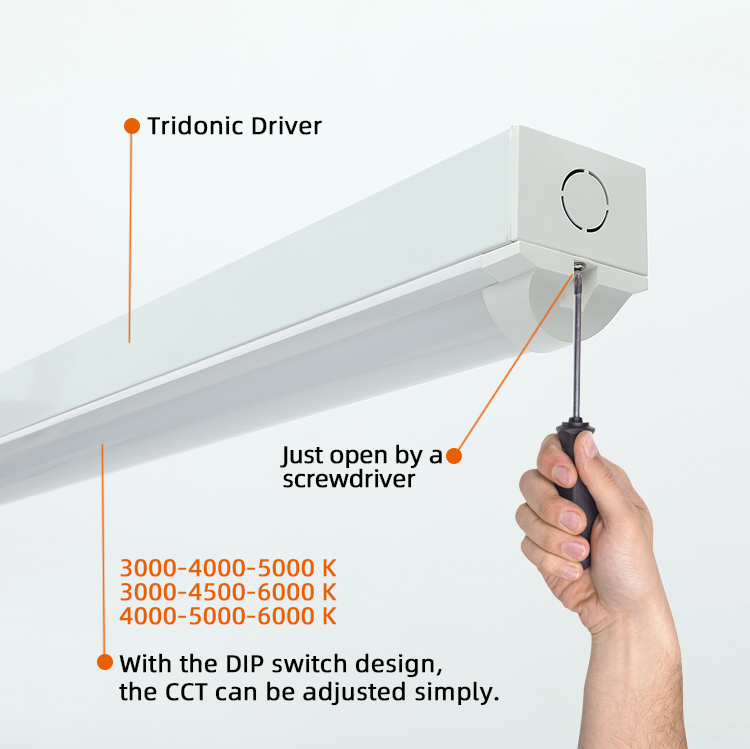

This is a new type of batten light developed on the basis of our led batten fitting. The appearance of this LED batten light is more beautiful and gives users a new feeling. The luminous body of the lamp adopts an all-plastic design, which can meet the requirements of IP54 protection level, and the base is still made of aluminum alloy material with spraying surface treatment. LED Batten is mainly used to replace traditional fluorescent lamps and LED lamps, so the market demand is large and can be used in all lighting places. This kind of LED batten light plays a very important role in our life, as it is popular and favored by people, the data shows, there is over 60% market share compare with other lights.

Description
Product Features
Technical Specifications

Description

Package

Size	Inner Box	Master Carton	Q`ty/Carton	N.W./Carton	G.W./Carton
600mm	605 x 71 x 62mm	620x 370 x 140mm	10PCS	5KG	6.4KG
1200mm	1205 x 71 x 62mm	1220 x 370 x 140mm	10PCS	8.8KG	11.3KG
1500mm	1505 x 71 x 62mm	1520 x 370 x 140mm	10PCS	10.8KG	14.5KG

Features

Datasheet

Input Voltage: AC220-240V 50/60Hz

SDCM: <5

PF:>0.9

IP Rate：IP20

CRI: >80Ra

Driver: Tridonic/OSRAM/BOKE

Lifespan: 50,000Hrs(L80B10)

Function: On/OFF/Emergency/DALI

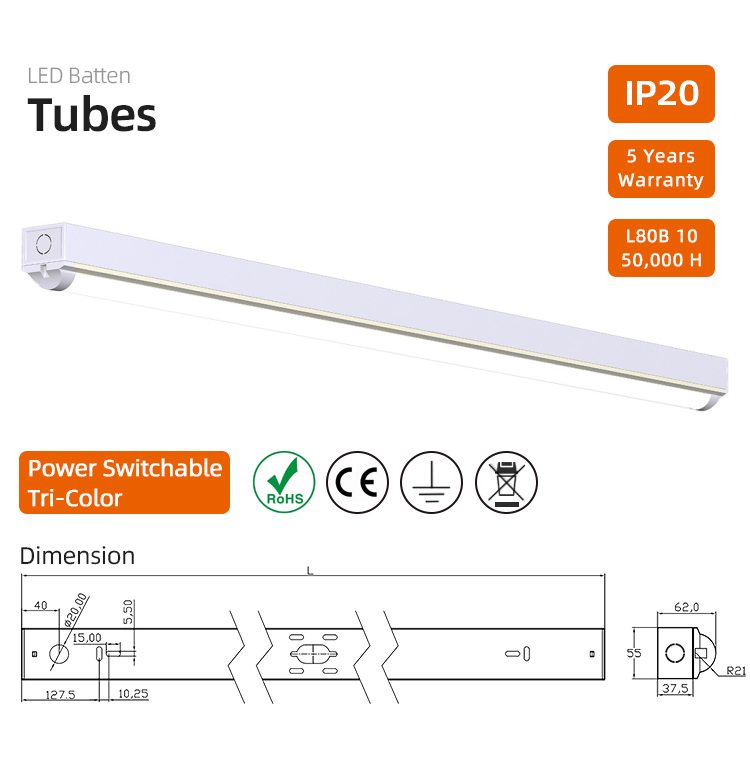

Item	Model No.	Power	Lumen	Luminous Efficacy	CCT (K)	*LWH*
1	BA008-06C030	17.1W-21.4W-25.7W-30W	Max 3750lm	>125lm/W	3000K/4000K/5000K/6000K 3000K-4000K-5000K 3000K-4000K-6000K	600x55x62mm
2	BA008-12C040	22.8W-28.5W-34.2W-40W	Max 5000lm	>125lm/W	3000K/4000K/5000K/6000K 3000K-4000K-5000K 3000K-4000K-6000K	1200x55x62mm
3	BA008-15C055	30.4W-38W-45.6W-53.2W	Max 6875lm	>125lm/W	3000K/4000K/5000K/6000K 3000K-4000K-5000K 3000K-4000K-6000K	1500x55x62mm
